SAFT公司是設計和制造電池工業技術的鋰離子電池，SAFT在可再生能源儲存、運輸和電信網絡市場產品。

LSH20

Lithium-sulfur dioxide (Li-SO2) : LO/G cell ranges

	G04/3	G06/2	G32/3	G36/2	LO34SX
Size	AA	AA	2/3 A	"Long" A	1/3 C
Open Circuit Voltage	3 V	3 V	3 V	3 V	3 V
Nominal Voltage	2.8 V	2.8 V	2.8 V	2.8 V	2.9 V
Nominal capacity (drain)	0.45 Ah?(50 mA)	0.95 Ah?(80 mA)	0.8 Ah (80 mA)	1.7 Ah (80 mA)	0.86 Ah (80 mA)
Max. recom. Cont. Current	0.25 A	0.5 A	0.75 A	1.5 A	1.0 A
Operating temperature range	-60/+70°C*	-60/+70°C*	-60/+70°C*	-60/+70°C*	-60/+70°C*
Outside diameter max	14.2 mm	14.2 mm	16.3 mm	16.3 mm	25.9 mm
Length max	27.9 mm	50.3 mm	34.5 mm?	57.7 mm?	20.3 mm?
Weight	8 g	15 g	12 g	18 g	18 g
Transport	Non restricted	Non restricted	Non restricted	Non restricted	Non restricted

	LO35SX	G52/3	LO29SHX	G54/3	LO43SHX
Size	2/3 C	C	C	5/4 C	5/4 C
Open Circuit Voltage	3 V	3 V	3 V	3 V	3 V
Nominal Voltage	2.8 V	2.8 V	2.8 V	2.8 V	2.8 V
Nominal capacity (drain)	2.2 Ah (650 mA)	3.2 Ah (1.0 A)	3.75 Ah (0.25 A)	5.0 Ah (0.2 A)	5.0 Ah (0.2 A)
Max. recom. Cont. Current	2.0 A	2.5 A	2.5 A	2.5 A	2.5 A
Operating temperature range	-60/+70°C*	-60/+70°C*	-60/+70°C*	-60/+70°C*	-60/+70°C*
Outside diameter max	25.9 mm	25.6 mm	25.6 mm	25.6 mm	26.0 mm
Length max	35.9 mm	49.5 mm	50.4 mm	60.2 mm	59.2 mm
Weight	30 g	47 g	40 g	58 g	53 g
Transport	Non restricted	Class 9	Class 9	Class 9	Class 9

	LO40SX	LO30SHX	G26	LO26SX	LO26SHX
Size	2/3 "Thin" D	"Thin" D	D	D	D
Open Circuit Voltage	3 V	3 V	3.0 V	3.0 V	3.0 V
Nominal Voltage	2.8 V	2.8 V	2.8 V	2.8 V	2.8 V
Nominal capacity (drain)	3.5 Ah (0.12 A)	5.75 Ah (0.2 A)	7.75 Ah ??(0.25 A)	7.75 Ah?(0.25 A)	7.5 Ah (0.25 A)
Max. recom. Cont. Current	2.0 A	3.0 A	2.5 A	2.5 A	4.0 A
Operating temperature range	-60/+70°C*	-60/+70°C*	-60/+70°C*	-60/+70°C*	-60/+70°C*
Outside diameter max	28.95 mm	29.1 mm	34.5 mm	34.2 mm	34.2 mm
Length max	42.29 mm	59.9 mm	59.8 mm?	59.3 mm	59.3 mm
Weight	40 g	63 g	85 g	85 g	85 g
Transport	Class 9	Class 9	Class 9	Class 9	Class 9

	LO26SXC	LO25SX	LO39SHX	G22/6	G62/1
Size	D	"Fat" D	F	DD	"Long Fat DD"
Open Circuit Voltage	3.0 V	3 V	3 V	3 V	3 V
Nominal Voltage	2.8 V	2.8 V	2.8 V	2.8 V	2.8 V
Nominal capacity (drain)	9.2 Ah?(0.25 A)	8.0 Ah (0.27 A)	11.5 Ah (1 A)	16.5 Ah (0.5 A)	34.0 Ah (1.0 A)
Max. recom. Cont. Current	2.5 A	2.5 A	3.0 A	3.0 A	3.0 A
Operating temperature range	-60/+70°C*	-60/+70°C*	-60/+70°C*	-60/+70°C*	-60/+70°C *
Outside diameter max	34.2 mm	39.5 mm	31.9 mm	33.3 mm	41.7 mm
Length max	59.3 mm	50.3 mm	100.3 mm	120.6 mm	141 mm
Weight	85 g	96 g	125 g	175 g	300 g
Transport	Class 9	Class 9	Class 9	Class 9	Class 9

Lithium-thionyl chloride (Li-SOCl2) : LSH cell range

Lithium-thionyl chloride (Li-SOCl2) : LS-W cell range

Lithium-thionyl chloride (Li-SOCl2) : Li-SOCl2?civil battery packs

LS14250MLB	LS9V	Lithopack
Cell type constuction	1s1p LS14250	3s1p LS 14250	2s1p LS 14500
Open Circuit Voltage	3.67 V	11.0 V	7.3 V
Nominal Voltage	3.6 V	9.0 V	7.2 V
Rated capacity	1.2 Ah	1.2 Ah	2.6 Ah
Max. dimensions	16.8x28.6 mm	49.1x46.8x26.8 mm	56.6x31.6x17.3 mm
Typical weight	15 g	29 g	34 g
Typical applications	Metering, Professional electronics	Memory back-up, Metering	Memory back-up

Lithium-thionyl chloride (Li-SOCl2) : LS cell range

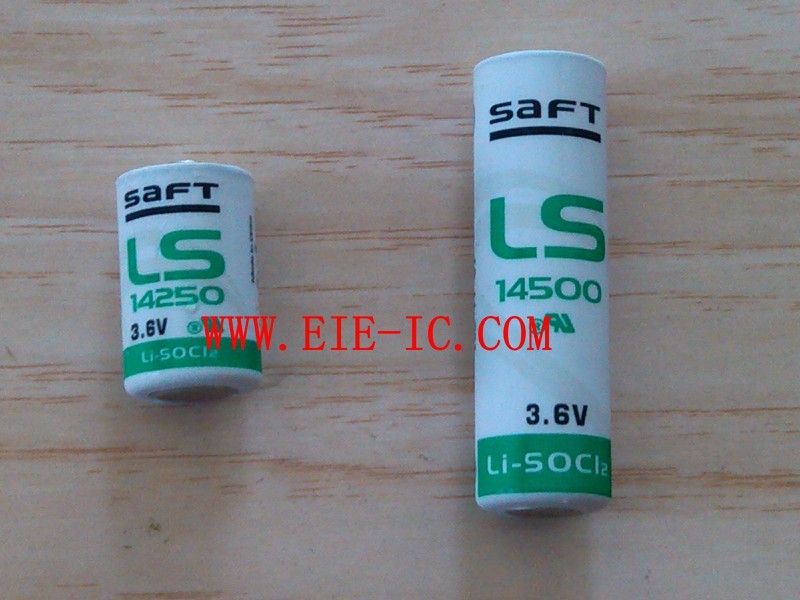

BATTERY CHARACTERISTICS	LS14250	LS14500	LS14500C	LS14500Ex
Size	? AA	?AA	AA	AA
Open Circuit Voltage	3.67 V	?3.67 V	3.67 V	3.67 V
Nominal Voltage	3.6 V	?3.6 V	3.6 V	3.6 V
Nominal capacity (drain)	1.2 Ah (1 mA)	?2.6 Ah (2 mA)	2.7 Ah (2 mA)	2.6 Ah (2 mA)
Max. recom. Cont. Current	35 mA	?50 mA	25?mA	50?mA
Operating temperature range	-60/+85°C*	?-60/+85C*	-60/+70°C*	-60/+85°C*
Outside diameter max	14.55 mm	?14.55 mm	14.65 mm	14.55 mm
Length max	25.15 mm	?50.3 mm	50.3 mm	50.3?mm
Weight	8.9 g	?16.7 g	16.2 g	16.7 g
Transport	Non-restricted	?Non-restricted	Non-restricted	Non-restricted
Production site	UK, F, PRC	?UK, F, PRC	F	UK, PRC

Lithium-manganese dioxide (Li-MnO2) : LM/M cell ranges

LM spiral cells	LM17130	LM22150	M49	M52HR	M56
Size	1/3 A	1/3 sub-C	3/4 sub-C	C	5/4 C
Open circuit Voltage	3.2 V	3.2 V	3.2 V	3.2 V	3.2 V
Nominal voltage	3.0 V	3.0 V	3.0 V	3.0 V	3.0 V
Nominal capacity (drain; 2,0 V cut off)	0.5 Ah (4.5 mA)	0.9 Ah (40 mA)	1.6 Ah (80 mA)	4.8 Ah (150 mA)	6.7 Ah (150 mA)
Max. recom. Cont. Current	0.3 A	0.4 A	0.3 A	2.0 A	2.5 A
Operating temp. Range	-40/+70°C	'-40/+70°C	'-40/+70°C	'-40/+70°C	'-40/+70°C
Outside diameter max	16.7 mm	22.8 mm	22.5 mm	26.2 mm	26.2 mm
Height max	16.6 mm	17.3 mm	32.0 mm	51.5 mm	61.5 mm
Weight	8 g	15 g	24 g	59 g	70 g
Transport	Non restricted	Non restricted	Non restricted	Class 9	Class 9

LM spiral cells	M19	LM33550	M20	M20HR	M24HR	M62
Size	"Short" D	D	D	D	DD	"Big" DD
Open circuit Voltage	3.2 V	3.2 V	3.2 V	3.2 V	3.2 V	3.2 V
Nominal voltage	3.0 V	3.0 V	3.0 V	3.0 V	3.0 V	3.0 V
Nominal capacity (drain; 2,0 V cut off)	10.3 Ah (450 mA)	13.0 Ah (250 mA)	12.6 Ah (150 mA)	11.5 Ah (0.5 A)	20.0 Ah (2.0 A)	33.0 Ah (1.6 A)
Max. recom. Cont. Current	3.0 A	4.0 A	3.5 A	4.0 A	6.0 A	6.0 A
Operating temp. Range	-40/+70°C	-40/+70°C	-40/+70°C	-40/+70°C	-40/+70°C	-40/+70°C
Outside diameter max	33.5 mm	34.2 mm	34.2 mm	34.2 mm	33.5 mm	42.5 mm
Height max	58.5 mm	61.4 mm	61.5 mm	61.5 mm	110.5 mm	133.0 mm
Weight	105 g	120 g	117 g	117 g	201 g	355 g
Transport	Class 9	Class 9	Class 9	Class 9	Class 9	Class 9
