Q-TECH
Q-tech

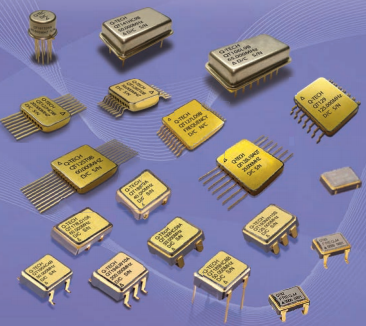

Q-TECH成立于1972年,目的是提供石英鐘振蕩器和混合動力車。Q-TECH產(chǎn)品由前緣振蕩器技術、客戶服務和準時交貨,Q-TECH有利于客戶和他們的產(chǎn)品應用需求。

q-tech

Data Sheet	Package	Dimensions (mm)	Market	Device Type	Logic Type	Supply Voltage	Package Type	Stability	Phase Noise Floor	View Outline
B+ Products	B+	See Data Sheet	Space	XO	ACMOS, HCMOS, LVCMOS, TTL, LVDS, LVPECL	2.5 to 5.0Vdc	See Data Sheet	±25ppm to ±100ppm	Contact Q-Tech	View
QTCC230	QTCC230	2.50 x 3.20 x 1.15	Miniature Oscillators	XO	CMOS	1.8 to 3.3Vdc	Surface Mount (Miniature SMD) 2.5 x 3.2mm 4 Pad	±50ppm to ±100ppm	Contact Q-Tech	View
QTCC356	QTCC356	3.20 x 5.00 x 1.20	Miniature Oscillators	XO	LVDS or LVPECL	2.5 to 3.3Vdc	Surface Mount (Miniature SMD) 3.2 x 5mm 6 Pads	±25ppm to ±100ppm	Contact Q-Tech	View
QTCC350	QTCC350	3.20 x 5.00 x 1.20	Miniature Oscillators	XO	CMOS	1.8 to 5Vdc	Surface Mount (Miniature SMD) 3.2 x 5mm 4 Pads	±50ppm to ±100ppm	Contact Q-Tech	View
QTCC570	QTCC570	5.00 x 7.00 x 1.40	Miniature Oscillators	XO	CMOS	1.8 to 5Vdc	Surface Mount (Miniature SMD) 5 x 7mm 4 Pads	±20ppm to ±100ppm	Contact Q-Tech	View
QTCC576	QTCC576	5.00 x 7.00 x 1.50	Miniature Oscillators	XO	LVDS or LVPECL	2.5 to 3.3Vdc	Surface Mount (Miniature SMD) 5 x 7mm 6 Pads	±25ppm to ±100ppm	Contact Q-Tech	View
QTCH High Temperature Oscillators	QTCH230	2.50 x 3.20 x 1.15	High Temp	XO	CMOS	1.8 to 3.3Vdc	Surface Mount (Miniature SMD) 2.5 x 3.2mm 4 Pad	±150ppm to ±250ppm	Contact Q-Tech	View
QTCH High Temperature Oscillators (32K768)	QTCH230 (32K768)	2.50 x 3.20 x 1.15	High Temp	XO	CMOS	2.5 to 3.3Vdc	Surface Mount (Miniature SMD) 2.5 x 3.2mm 4 Pad	±150ppm to ±250ppm	Contact Q-Tech	View
QTCH High Temperature Oscillators	QTCH350	3.20 x 5.00 x 1.20	High Temp	XO	CMOS	1.8 to 3.3Vdc	Surface Mount (Miniature SMD) 3.2x5mm 4 pads	±150ppm to ±250ppm	Contact Q-Tech	View
QTCH High Temperature Oscillators (32K768)	QTCH350 (32K768)	3.20 x 5.00 x 1.20	High Temp	XO	CMOS	2.5 to 3.3Vdc	Surface Mount (Miniature SMD) 3.2 x 5mm 4 Pads	±150ppm to ±250ppm	Contact Q-Tech	View
QTCH High Temperature Oscillators	QTCH570	5.00 x 7.00 x 1.40	High Temp	XO	CMOS	1.8 to 3.3Vdc	Surface Mount (Miniature SMD) 5 x 7mm 4 Pads	±150ppm to ±250ppm	Contact Q-Tech	View
QTCH High Temperature Oscillators (32K768)	QTCH570 (32K768)	5.00 x 7.00 x 1.40	High Temp	XO	CMOS	2.5 to 3.3Vdc	Surface Mount (Miniature SMD) 5 x 7mm 4 Pads	±150ppm to ±250ppm	Contact Q-Tech	View

QTCT220	2.0 x 2.5 x 0.7	Miniature Oscillators	TCXO	Clipped Sine	2.8 to 3.3Vdc	Surface Mount (Miniature SMD) 2.0 x 2.5mm 4 Pad	±0.5ppm to ±2.5ppm	Contact Q-Tech	View
QTCT230		QTCT230	2.5 x 3.2 x 0.9	Miniature Oscillators	TCXO	Clipped Sine	2.8 to 3.3Vdc	Surface Mount (Miniature SMD) 2.5 x 3.2mm 4 Pad	±0.5ppm to ±2.5ppm	Contact Q-Tech	View
QTCT350		QTCT350	3.20 x 5.00 x 1.10	Miniature Oscillators	TCXO	CMOS or Clipped Sine	2.8 to 5.0Vdc	Surface Mount (Miniature SMD) 3.2 x 5mm 4 Pads	±0.5ppm to ±2.5ppm	Contact Q-Tech	View
QTCT570		QTCT570	5.00 x 7.00 x 1.90	Miniature Oscillators	TCXO	CMOS or Clipped Sine	2.8 to 3.3Vdc	Surface Mount (Miniature SMD) 5 x 7mm 4 Pads	±0.5ppm to ±2.5ppm	Contact Q-Tech	View
QTCV356		QTCV356	3.20 x 5.00 x 1.20	Miniature Oscillators	VCXO	CMOS or PECL	3.3 to 5Vdc	Surface Mount (Miniature SMD) 3.2 x 5mm 6 Pads	±25ppm APR to ±100ppm APR	Contact Q-Tech	View
QTCV576		QTCV576	5.00 x 7.00 x 1.50	Miniature Oscillators	VCXO	CMOS or PECL	3.3 to 5Vdc	Surface Mount (Miniature SMD) 5 x 7mm 6 Pads	±30ppm APR to ±100ppm APR	Contact Q-Tech	View
Transistor Outline		QT1, QT2, QT3, QT14, QS1, QS2, QS3, QS14	9.14 x 9.14 x 6.60	Military & Avionics	XO	ACMOS, CMOS, HCMOS, LVHCMOS, TTL, Z	1.8 to 15Vdc	Transistor Outline (TO) 8 Pin	±5ppm to ±100ppm	-168 dBc/Hz @ 40MHz	View
QT1123L RTC		QT1123L, QS1123L, QG1123L	22.35 x 12.83 x 5.08	Military & Avionics	XO - RTC	CMOS	-5.2 to -4.5Vdc & 1.8 to 15Vdc	Dual In-line (DIP-14) 14 Pin	±40ppm to ±250ppm	Contact Q-Tech	View
B+ Products		QT180, QT181, QT182, QT183, QT184, QT185, QT186, QT187, QS180, QS181, QS182, QS183, QS184, QS185, QS186, QS187	5.00 x 7.00	Space	5x7 w/ 4pt Mount	ACMOS, HCMOS, LVCMOS, TTL, LVDS, LVPECL	2.5 to 5.0Vdc	5 x 7mm 4-Point Mount	±25ppm to ±100ppm	Contact Q-Tech	View
QT2010		QT2010	25.4 x 25.4 x 13.5	Military & Avionics	MCXO	CMOS	3.3Vdc	Through Hole	±5ppb to ±30ppb	-176 dBc/Hz @ 10MHz	View
QT2010		QT2010	25.4 x 25.4 x 13.5	Military & Avionics	MCXO	SINE	3.3Vdc	Through Hole	±5ppb to ±30ppb	-166 dBc/Hz @ 81.27MHz	View
QT2020		QT2020	25.40 x 50.80 x 8.26	Military & Avionics	MCXO	CMOS, SINE	3.3Vdc	Dual In-line 38 Pin	±5ppb to ±30ppb	-176 dBc/Hz @ 10MHz	View
QT2024		QT2024	12.8 x 12.8 x 5.08	High Temp	XO - RTC	CMOS	3.3Vdc	Through Hole	±40ppm to ±250ppm	Contact Q-Tech	View
Flat Pack Oscillators		QT21, QS21	15.88 x 15.88 x 3.56	Military & Avionics	XO	ACMOS, CMOS, ECL/PECL, HCMOS, LVHCMOS, TTL, Z	-5.2 to -4.5Vdc & 1.8 to 15Vdc	Flat Pack (FP) 20 Pin	±25ppm to ±100ppm	-168 dBc/Hz @ 24MHz	View
Flat Pack Oscillators		QT22, QS22	9.53 x 12.7 x 3.05	Military & Avionics	XO	ACMOS, CMOS, ECL/PECL, HCMOS, LVHCMOS, TTL, Z	-5.2 to -4.5Vdc & 1.8 to 15Vdc	Flat Pack (FP) 16 Pin	±25ppm to ±100ppm	-168 dBc/Hz @ 24MHz	View
Flat Pack Oscillators		QT24, QS24	15.88 x 15.88 x 3.05	Military & Avionics	XO	ACMOS, CMOS, ECL/PECL, HCMOS, LVHCMOS, TTL, Z	-5.2 to -4.5Vdc & 1.8 to 15Vdc	Flat Pack (FP) 20 Pin	±25ppm to ±100ppm	-168 dBc/Hz @ 24MHz	View
Flat Pack Oscillators		QT25, QS25	15.88 x 15.88 x 3.81	Military & Avionics	XO	ACMOS, CMOS, ECL/PECL, HCMOS, LVHCMOS, TTL, Z	-5.2 to -4.5Vdc & 1.8 to 15Vdc	Flat Pack (FP) 20 Pin	±25ppm to ±100ppm	-168 dBc/Hz @ 24MHz	View
Flat Pack Oscillators		QT26, QS26	14.99 x 20.07 x 4.06	Military & Avionics	XO	ACMOS, CMOS, ECL/PECL, HCMOS, LVHCMOS, TTL, Z	-5.2 to -4.5Vdc & 1.8 to 15Vdc	Flat Pack (FP) 14 Pin	±25ppm to ±100ppm	-168 dBc/Hz @ 24MHz	View
Flat Pack Oscillators		QT28, QS28	9.53 x 12.7 x 3.05	Military & Avionics	XO	ACMOS, CMOS, ECL/PECL, HCMOS, LVHCMOS, TTL, Z	-5.2 to -4.5Vdc & 1.8 to 15Vdc	Flat Pack (FP) 16 Pin	±25ppm to ±100ppm	-168 dBc/Hz @ 24MHz	View
Analog TCXO		QT3003C, QS3003C	20.32 x 12.83 x 5.08	Military & Avionics	TCXO	HCMOS	3.3 to 5Vdc	Dual In-line (DIP-8) 4 Pin	±1ppm to ±3ppm	-170 dBc/Hz @ 80MHz	View
Analog TCXO		QT3003S, QS3003S	20.32 x 12.83 x 5.08	Military & Avionics	TCXO	SINE	3.3 to 5Vdc	Dual In-line (DIP-8) 4 Pin	±1ppm to ±3ppm	-170 dBc/Hz @ 80MHz	View
Analog TCXO		QT3013C, QS3013C	20.32 x 12.83 x 5.08	Military & Avionics	TCXO	HCMOS	3.3 to 5Vdc	Surface Mount (SMD) 4 Pads	±1ppm to ±3ppm	-170 dBc/Hz @ 80MHz	View
Analog TCXO		QT3013S, QS3013S	20.32 x 12.83 x 5.08	Military & Avionics	TCXO	SINE	3.3 to 5Vdc	Surface Mount (SMD) 4 Pads	±1ppm to ±3ppm	-170 dBc/Hz @ 80MHz	View
Analog TCXO		QT3023C, QS3023C	20.32 x 12.83 x 5.08	Military & Avionics	TCXO	HCMOS	3.3 to 5Vdc	Surface Mount (SMD) Gull Wing 4 Pin	±1ppm to ±3ppm	-170 dBc/Hz @ 80MHz	View
Analog TCXO		QT3023S, QS3023S	20.32 x 12.83 x 5.08	Military & Avionics	TCXO	SINE	3.3 to 5Vdc	Surface Mount (SMD) Gull Wing 4 Pin	±1ppm to ±3ppm	-170 dBc/Hz @ 80MHz	View
Digital TCXO		QT3103	9.45 x 7.87 x 4.32	Military & Avionics	TCXO	HCMOS	3.3Vdc	Surface Mount (SMD) 9 Pad	±0.075ppm to ±1ppm	-159 dBc/Hz @ 10MHz	View
Digital TCXO		QT3105	9.45 x 7.87 x 4.32	Military & Avionics	TCXO	HCMOS	5.0Vdc	Surface Mount (SMD) 9 Pad	±0.075ppm to ±1ppm	-159 dBc/Hz @ 10MHz	View
QT38x RTC		QT380, QT381, QT382, QT383, QT384, QT385, QT386, QT387, QS380, QS381, QS382, QS383, QS384, QS385, QS386, QS387	5.0 x 7.0 x 2.54	High Temp	XO - RTC	CMOS	2.5 to 3.3Vdc	Surface Mount (Miniature SMD) 5 x 7mm Thru Hole 6 Pin	±150ppm to ±250ppm	Contact Q-Tech	View
Dual Inline Packages		QT41, QS41, QT42, QS42, QT47, QS47	20.32 x 12.83 x 5.08	Military & Avionics	XO	ACMOS, CMOS, ECL/PECL, HCMOS, LVHCMOS, TTL, Z	-5.2 to -4.5Vdc & 1.8 to 15Vdc	Dual In-line (DIP-14) 4 Pin	±5ppm to ±100ppm	-170 dBc/Hz @ 24MHz	View
QT4100		QT4100	65.0 x 44.5 x 39.4	Space	OCXO	CMOS	3.3 to 15Vdc	N/A	±10ppb to ±200ppb	-158 dBc/Hz @ 50MHz	View
QT4100		QT4100	65.0 x 44.5 x 39.4	Space	OCXO	SINE	3.3 to 15Vdc	N/A	±10ppb to ±200ppb	-158 dBc/Hz @ 50MHz	View
QT4200		QT4200	50.8 x 25.4 x 19.05	Space	OCXO	HCMOS	5 to 15Vdc	N/A	±10ppb to ±200ppb	-164 dBc/Hz @ 80MHz	View
QT4200		QT4200	50.8 x 25.4 x 19.05	Space	OCXO	SINE	5 to 15Vdc	N/A	±10ppb to ±200ppb	-164 dBc/Hz @ 80MHz	View
Dual Inline Packages		QT50, QS50, QT51, QS51, QT55, QS55	12.83 x 12.83 x 5.08	Military & Avionics	XO	ACMOS, CMOS, ECL/PECL, HCMOS, LVHCMOS, TTL, Z	-5.2 to -4.5Vdc & 1.8 to 15Vdc	Dual In-line (DIP-8) 4 Pin	±5ppm to ±100ppm	-170 dBc/Hz @ 24MHz	View
QT5000		QT5000	25.4 x 25.4 x 13.5	Military & Avionics	OCXO	HCMOS	3.3 to 12Vdc	Through Hole	±10ppb to ±200ppb	-164 dBc/Hz @ 100MHz	View
QT5000		QT5000	25.4 x 25.4 x 13.5	Military & Avionics	OCXO	SINE	-5.2 to -4.5Vdc & 1.8 to 15Vdc	Through Hole	±10ppb to ±200ppb	-164 dBc/Hz @ 100MHz	View
QT58x and QT59x		QT581, QT582, QT583, QT584, QT588, QT589, QT590, QT592, QS581, QS582, QS583, QS584, QS588, QS589, QS590, QS592	5.00 x 7.00 x 2.00	High Temp	XO - RTC	CMOS	2.5 to 3.3Vdc	Surface Mount (Miniature SMD) 5 x 7mm Thru Hole 6 Pin	±40ppm to ±250ppm	Contact Q-Tech	View
